PV-ezRack®/MOUNTING SYSTEM/Ground Series/Fixed Tilt/SolarTerrace™ III-A

logo

SolarTerrace™

III-A

Universal and Earthed Ground Mount Frame for Corrosive Environments and for Tough Soil Conditions

Features

  • Manufactured from high-quality structural grade and anodised aluminium
  • Durable Even in Harsh Environments
  • Support Leg Is Delivered in One Piece
  • Suitable for All Soil and Ground Types
  • Full Earthing Function

Built to Last

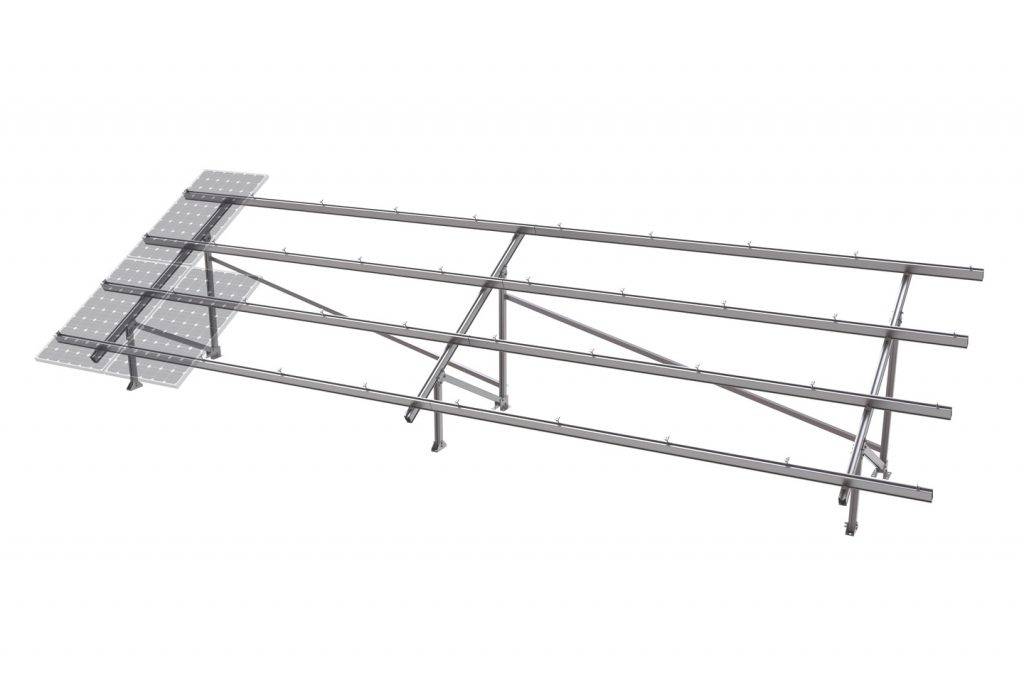

PV-ezRack SolarTerrace III-A is the perfect mounting solution for corrosive environments.

The support legs can be installed either with concrete ballast footing or on ground screws which makes it suitable for almost every soil condition.

Its user-friendly high level of prefabrication makes it easy to install and therefore practical for smaller commercial and even for residential installations.

Image Courtesy: Macquarie Energy, Australia

Product Details

Key Benefits

Videos

Downloads

Components

Accessories

Customised
Solutions arrow

Product Details

Key Benefits

Durable Even in Harsh Environments

STIII-A contains only 6005 Aluminium alloy and 304 stainless steel (316 on request), which makes it suitable for even the toughest environments, such as corrosive sites close to coastlines.

Support Leg Is Delivered in One Piece

The support legs of the STIII-A are completely pre-assembled, they only needed to be opened up and secured to the foundation. They even have the positioning rail clamps pre-installed**, so you don’t need to measure and mark the rail positions anymore. The combination of these features is saving valuable time in assembly and logistics, making it one of the fastest system on the market.

Suitable for All Soil and Ground Types

The support legs can be installed either with a concrete ballast footing or with ground screws. This makes STIII-A suitable for the most challenging soil conditions where ramming is not possible.

Full Earthing Function

With pre-fitted pressure bolts and star washers in the pre-assembled support, it can create earthing continuity from T rail to support. In this way, SolarTerrace III-A system is a full earthing system.

Videos

Install PV-ezRack SolarTerrace III A Ground Mounting System

Girder Extension for SolarTerrace-A Ground Mounting Systems

Downloads

Search result: documents found

Clenergy Pv-ezRack Product CatalogueDownload
Clenergy PV-ezRack T-Rail 110mm Datasheet V2.0 – ER-R-T110Download
Clenergy PVezRack – 25 Years Product WarrantyDownload
Clenergy PVezRack The Austin Commercial Lug datasheetDownload
Inter and End Clamp Standard DatasheetDownload
Inter Clamp Standard 30 and 35mm with Grounding Pins DatasheetDownload
Module Inter and End Clamp – Security Series DatasheetDownload
Grounding System Installation GuideDownload
SolarTerrace III-A Double Support DatasheetDownload
SolarTerrace III-A Single Support DatasheetDownload
Ground Screw DatasheetDownload
Girder Extension for SolarTerrace-A Installation GuideDownload
Girder Extension for SolarTerrace II-A and III-A DatasheetDownload
SolarTerrace Ⅲ-A with Ground Screw BrochureDownload
SolarTerrace III-A Installation GuideDownload
SolarTerrace III-A BrochureDownload
Clenergy Pv-ezRack Product CatalogueDownload
Clenergy PV-ezRack T-Rail 110mm Datasheet V2.0 – ER-R-T110Download
Clenergy PVezRack – 25 Years Product WarrantyDownload
Clenergy PVezRack The Austin Commercial Lug datasheetDownload
Inter and End Clamp Standard DatasheetDownload
Inter Clamp Standard 30 and 35mm with Grounding Pins DatasheetDownload
Module Inter and End Clamp – Security Series DatasheetDownload
Grounding System Installation GuideDownload
SolarTerrace III-A Double Support DatasheetDownload
SolarTerrace III-A Single Support DatasheetDownload
Ground Screw DatasheetDownload
Girder Extension for SolarTerrace-A Installation GuideDownload
Girder Extension for SolarTerrace II-A and III-A DatasheetDownload
SolarTerrace Ⅲ-A with Ground Screw BrochureDownload
SolarTerrace III-A Installation GuideDownload
SolarTerrace III-A BrochureDownload
SolarTerrace Ⅲ-A with Ground Screw BrochureDownload
SolarTerrace III-A BrochureDownload
Clenergy Pv-ezRack Product CatalogueDownload
Clenergy PV-ezRack T-Rail 110mm Datasheet V2.0 – ER-R-T110Download
Clenergy PVezRack The Austin Commercial Lug datasheetDownload
Inter and End Clamp Standard DatasheetDownload
Inter Clamp Standard 30 and 35mm with Grounding Pins DatasheetDownload
Module Inter and End Clamp – Security Series DatasheetDownload
SolarTerrace III-A Double Support DatasheetDownload
SolarTerrace III-A Single Support DatasheetDownload
Ground Screw DatasheetDownload
Girder Extension for SolarTerrace II-A and III-A DatasheetDownload
Grounding System Installation GuideDownload
Girder Extension for SolarTerrace-A Installation GuideDownload
SolarTerrace III-A Installation GuideDownload
Clenergy PVezRack – 25 Years Product WarrantyDownload

Components

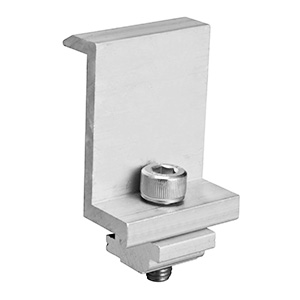

ER-EC-ST

End Clamp

ER-EC-ST

ER-IC-ST

Inter Clamp

ER-IC-ST

ER-R-T110

T -Rail110

ER-R-T110

Splice-for-T-110-Rail-er-sp-t110

Splice for T-110 Rail

ER-SP-T110

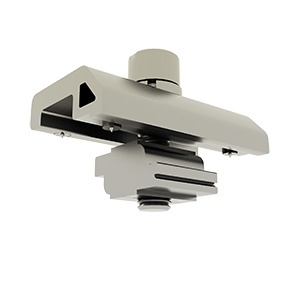

ER-RC-TG

Rail Clamp for T Rail with Grounding

ER-RC-T/G

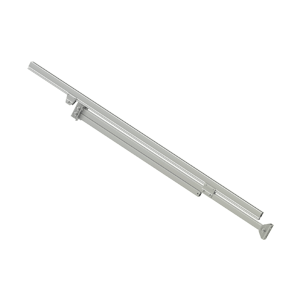

Support-Pre-assembled-er-s-stiiia-30-32

Support (Pre-assembled)

ER-S-STIIIA

C-U3046-G

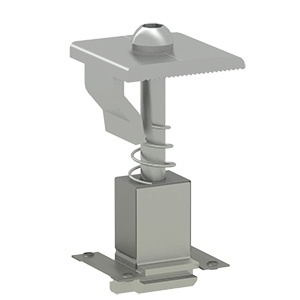

Universal Clamp for Frame Height 30-46mm with Grounding Clip

C-U/30/46-G

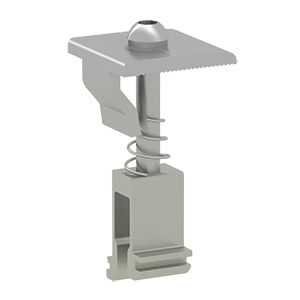

C-U3046

Universal Clamp for Frame Height 30-46mm

C-U/30/46

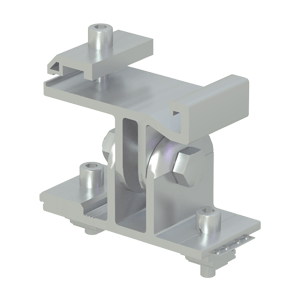

EastWest-Adjustable-Bracket-for-T-Rail-110-with-Grounding-br-r110-ew-g

East/West Adjustable Bracket for T-Rail 110 with Grounding

BR-R110/EW/G (Optional)

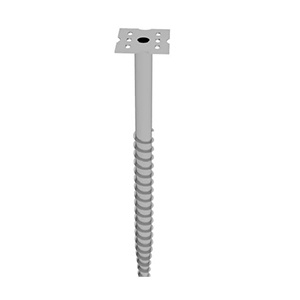

GS-76-3.5-13-F0-new-image

Ground Screw Ø76*3.5*1300mm, with Quadrate flange & Continuous Small blade

GS-76/3.5/13-F0

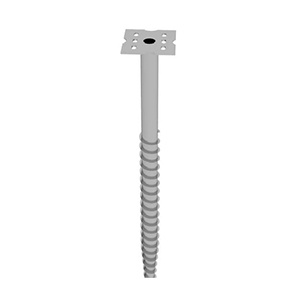

GS-76-3.5-16-F0-new-image

Ground Screw Ø76*3.5*1600mm, with Quadrate flange and Continuous Small blade

GS-76/3.5/16-F0

Girder Extention for SolarTerrace-A (II and III) 200mm

GE-STA/200

Accessories

EZ-GL-ST-with-copper-pipe

Grounding Lug

EZ-GL-ST

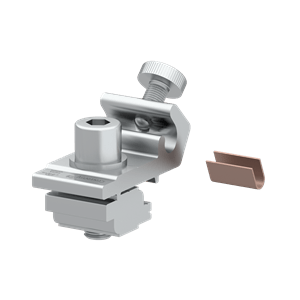

Grounding-Lug-with-U-Shape-Copper-Channel-EZ-GL-ST-UC

Grounding Lug with U-Shape Copper Channel

EZ-GL-ST/UC

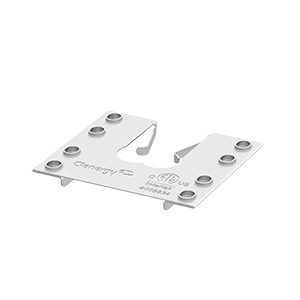

EZ-GC-ST

Grounding Clip

EZ-GC-ST

Universal-Cable-Clip-for-PV-Panels-for-holding-2-cables-EZ-CC-PV2

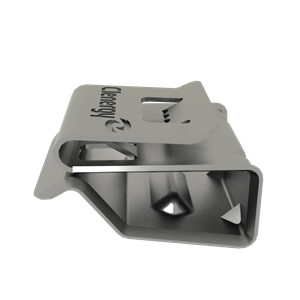

Universal Cable Clip for PV Panels for Holding 2 Cables

EZ-CC-PV/2

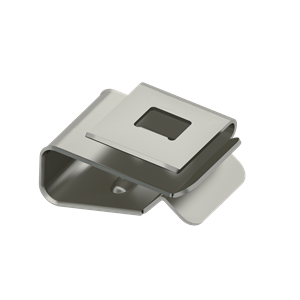

Universal-Cable-Clip-for-PV-Panels-for-holding-2-cables-Landscape-EZ-CC-PV-2-L

Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape

EZ-CC-PV/2/L

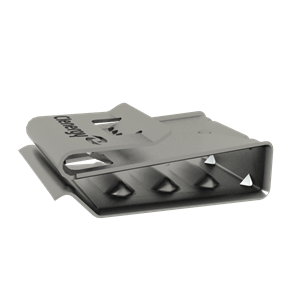

Universal-Cable-Clip-for-PV-Panels-for-holding-4-cables-EZ-CC-PV4

Universal Cable Clip for PV Panels for Holding 4 Cables

EZ-CC-PV/4

Universal-Cable-Clip-for-PV-Panels-for-holding-4-cables-Landscape-ez-cc-pv-4-l

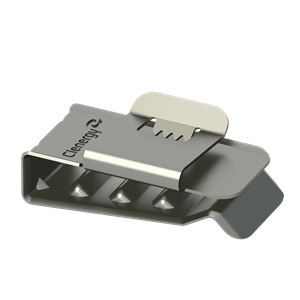

Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape

EZ-CC-PV/4/L

Cable-Clip-for-T-Rail-Holding-4-Cables-EZ-CC-TR4

Cable Clip for T-Rail Holding 4 Cables

EZ-CC-TR4

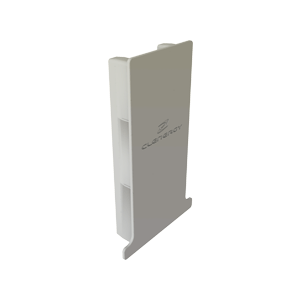

Cap-for-T-110-Rail-ER-CAP-T110

Cap for T-110 Rail

ER-CAP-T110

Cap-for-Square-Girder-ER-CAP-GA

Cap for Square Girder

ER-CAP-G/A

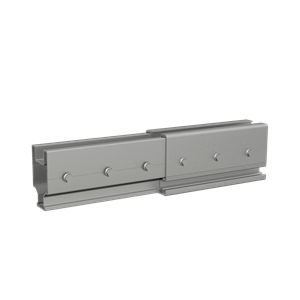

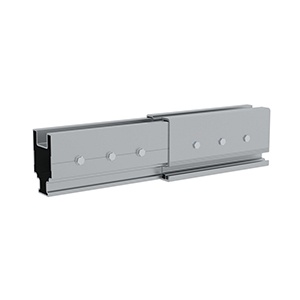

Girder-Extension-GE-STA-200

Girder Extension

GE-STA/200

PV-ezRack-Ground-Screw-Ø76-3.5-with-Quadrate-flange-and-Continuous-Small-blade-GS-76-3.5-13-F0

PV-ezRack Ground Screw Ø76*3.5, with Quadrate flange and Continuous Small blade

GS-76/3.5/13-F0 (/GS-76/3.5/16-F0)

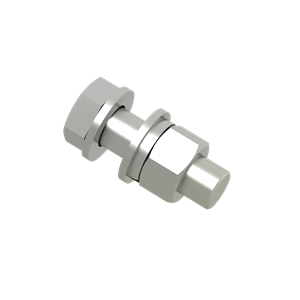

Hexagonal Bolt M16*50, with nut and washer

ER-HB-ST16/50A
