RUNNUR®/RUNNUR/Cable Tray Systems/Tunnal Rail Tray
Cable Tray Systems
Tunnal Rail Tray
Cable Management System – Energy & Information Connected
The Tunnal Rail Tray was designed initially for information and energy cables for solar PV systems, however today as a versatile channel, its being used from building infrastructure to IT networking and so much more.
Mill Finish Aluminium
The Tunnal Rail is made from aluminium and allows for complex cables to be neatly connected, and with its cover, it provides great aesthetics and concealment.
The aluminum alloy provides a lighter density, and is robust. As a flexible material, it makes manufacturing into various profiles easy. It has excellent electrical and thermal conductivity with exceptional corrosion resistance, which is why it is widely used in industry.
Loading Rating and Deflection
| Span | Load per Meter | Deflection |
|---|---|---|
| 2.5m | 30kg | 21mm |
| 2m | 60kg | 17mm |
| 1.5m | 143kg | 13mm |
| 1.0m | 290kg | 9mm |
Specification
| Part No. (Ordering Code) | Dimensions | Weight | Packaging | Material | Color | Finish | Standard |
|---|---|---|---|---|---|---|---|
| CR-RT-TUN/4400/MF, CR-RT-TUN/4600/MF | W36.0mm* H50.7mm*4400 or 4600mm | 0.947 Kg/m | 96 pcs per pack; 4 packs (384 pcs) per pallet | AL6005-T5 | Silver | Mill Finished | AS NZS1170.2 |
Product Details |
Customised |
|
Product Details |
Key Benefits
Cable Management System
The Tunnal Rail Tray was designed initially for information and energy cables for solar PV systems, however today as a versatile channel, its being used from building infrastructure to IT networking and so much more.
Mill Finish Aluminium
The aluminum alloy provides a lighter density, and is robust. As a flexible material, it makes manufacturing into various profiles easy. It has excellent electrical and thermal conductivity with exceptional corrosion resistance, which is why it is widely used in industry.
Videos
Installation Video
RUNNUR from Clenergy - Your Cable Management Partner
Downloads
Search result: documents found
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Tunnal Rail Tray Datasheet | Download |
| Clenergy RUNNUR Tunnal Rail Tray Installation Guide | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR Catalogue | Download |
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Tunnal Rail Tray Datasheet | Download |
| Clenergy RUNNUR Tunnal Rail Tray Installation Guide | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR Catalogue | Download |
| Clenergy RUNNUR Catalogue | Download |
| Clenergy RUNNUR Tunnal Rail Tray Datasheet | Download |
| Clenergy RUNNUR Tunnal Rail Tray Installation Guide | Download |
| Clenergy RUNNUR Warranty Document | Download |
Components

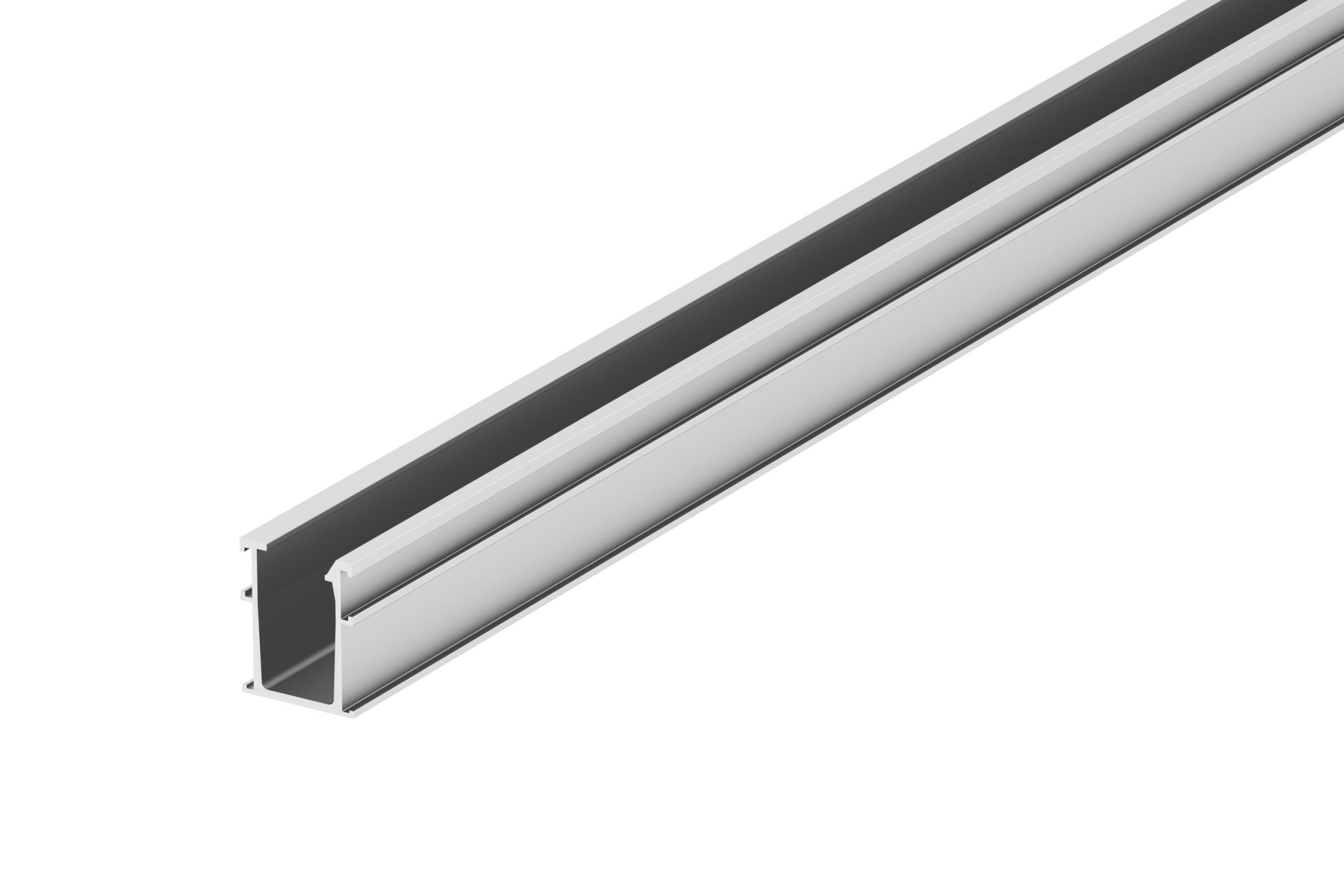

Tunnal Rail
CR-RT-TUN/4400/MF,
CR-RT-TUN/4600/MF
(Standards: AS NZS1170.2)
Accessories
TUNNAL Rail Tray Cover, 380 mm
SCO-ECO/380
Splice Plate
ER-SP-ECO

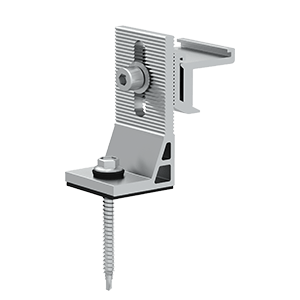

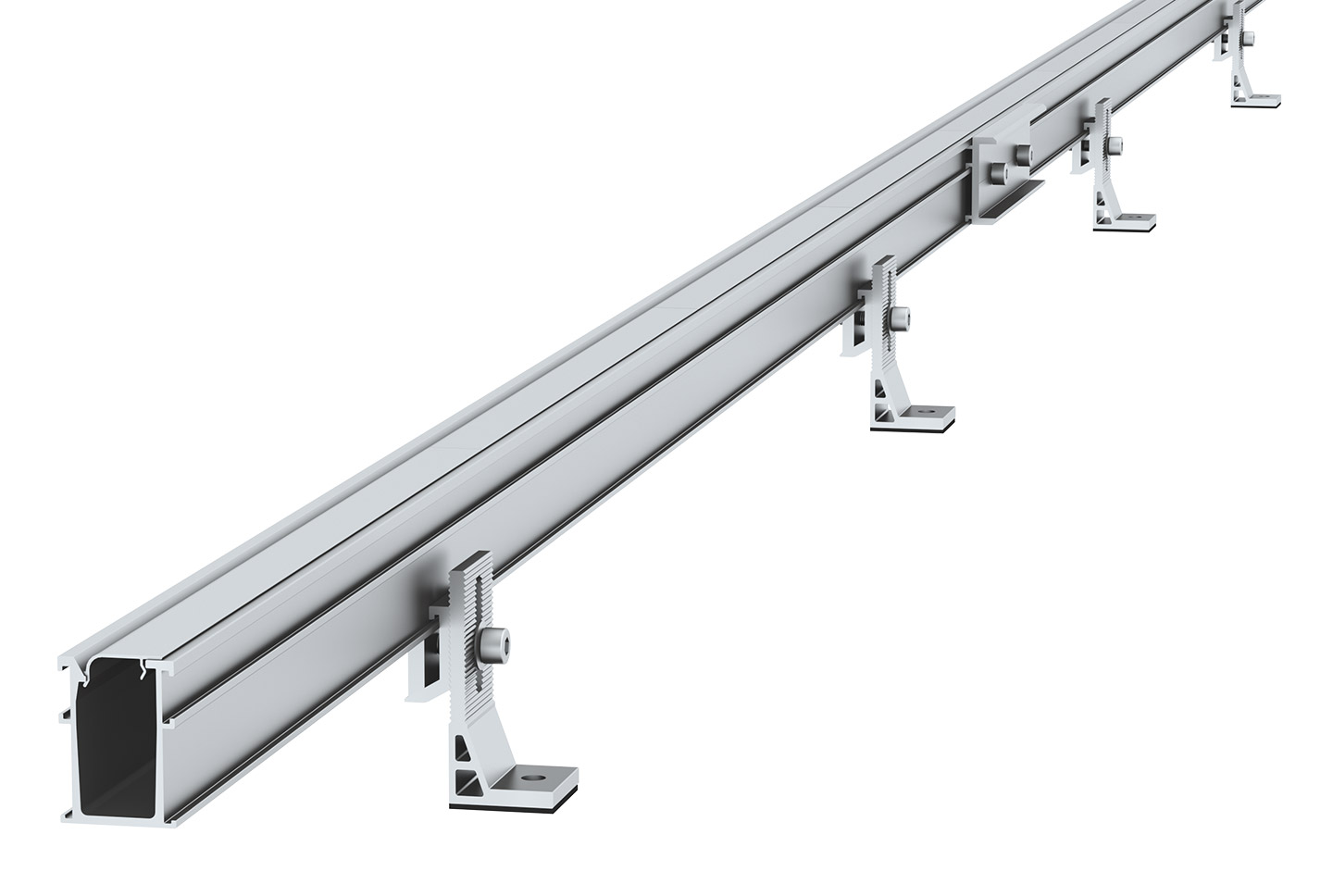

Tin lnterface A with ezClick connection
ER-I-05A/EZC/ECO
Tin Interface A with ezClick connection and double chambers
ER-I-05A/EZC/MAX

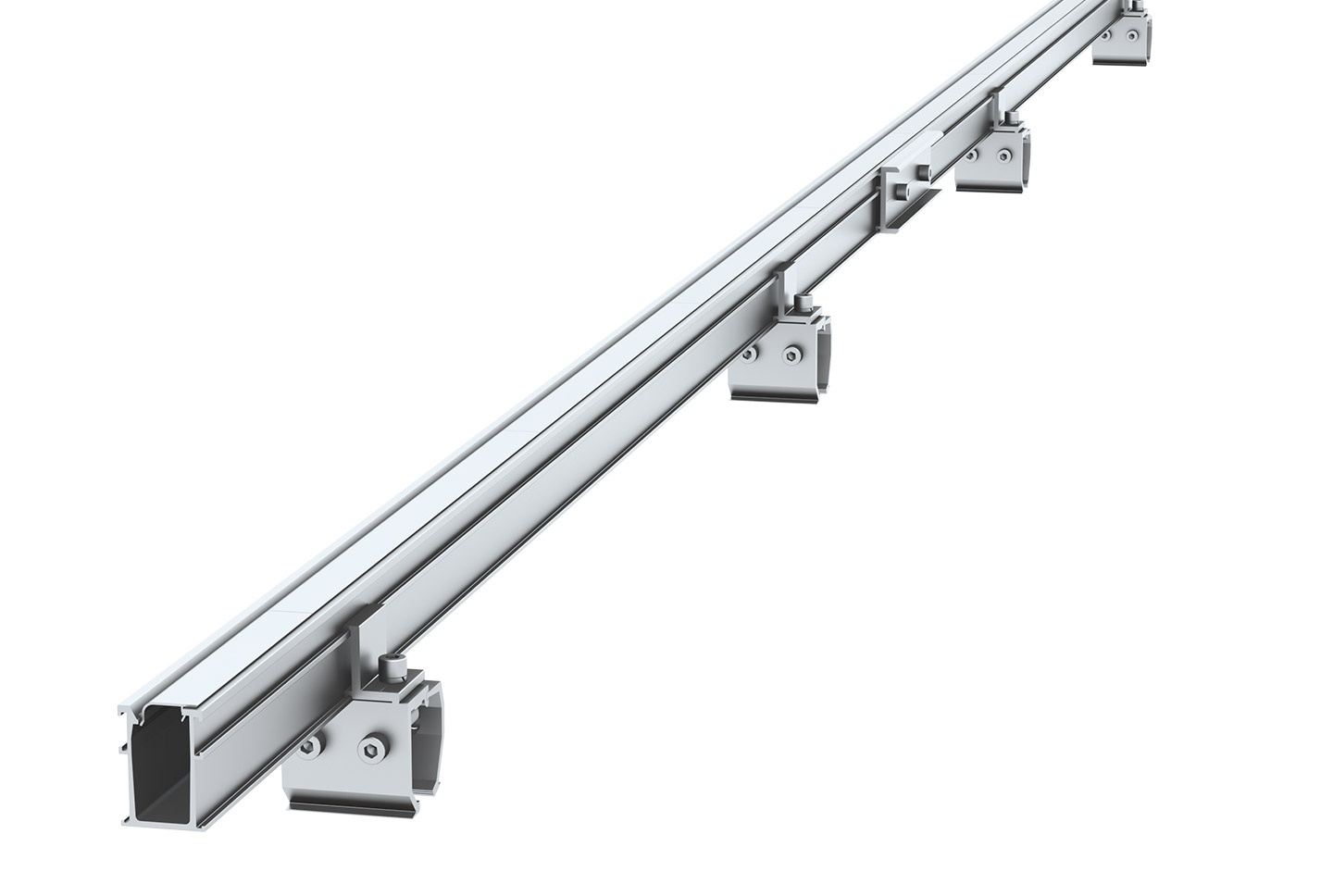

Brooklyn Klip-lok Interface pre-assembly with Cross Connector Clamp
ER-I-34/CRC
