RUNNUR®/RUNNUR/Cable Tray Systems/MT Cable Tray
Cable Tray Systems
MT Cable Tray
Cable Management System – Energy & Information Connected
The MT-Rail Cable Tray was designed initially for information and energy cables for solar PV systems, however today as a versatile channel, its being used from building infrastructure to IT networking and so much more.
Mill Finish Aluminium
The MT Rail is made from aluminium and allows for complex cables to be neatly connected, and with its cover, it provides great aesthetics and concealment.
The aluminum alloy provides a lighter density, and is robust. As a flexible material, it makes manufacturing into various profiles easy. It has excellent electrical and thermal conductivity with exceptional corrosion resistance, which is why it is widely used in industry.
Loading Rating and Deflection
| Span | Load per Meter |
|---|---|
| 2.5m | 38kg |
| 2.0m | 59kg |
| 1.5m | 106kg |
| 1.0m | 239kg |
Specification
| Part No. (Ordering Code) | Application | Fixing Method | Dimensions | Weight | Packaging | Material | Finish | Standards |
|---|---|---|---|---|---|---|---|---|
| EZ-CT-40/40/2560, CR-CT-40/40/3000 | Fix Solar DC Cables | Fix on the ECO or T rail with Z module | L2560 or 3000mm*W40mm*H40mm | 0.676 kg/m | 1020 pcs per pallet | AL/6005-T5 | Mill Finish | AS/NZS1866 |
Product Details |
Customised |
|
Product Details |
Key Benefits
Cable Management System
The MT-Rail Cable Tray was designed initially for information and energy cables for solar PV systems, however today as a versatile channel, its being used from building infrastructure to IT networking and so much more. The MT Rail is made from aluminium and allows for complex cables to be neatly connected, and with its cover, it provides great aesthetics and concealment.
Mill Finish Aluminium
The aluminum alloy provides a lighter density, and is robust. As a flexible material, it makes manufacturing into various profiles easy. It has excellent electrical and thermal conductivity with exceptional corrosion resistance, which is why it is widely used in industry.
Videos
Installation Video
RUNNUR from Clenergy - Your Cable Management Partner
Downloads
Search result: documents found
| Clenergy RUNNUR Brochure | Download |
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR MT Cable Tray Datasheet | Download |
| Clenergy RUNNUR MT Cable Tray Installation Guide | Download |
| Clenergy RUNNUR Brochure | Download |
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR MT Cable Tray Datasheet | Download |
| Clenergy RUNNUR MT Cable Tray Installation Guide | Download |
| Clenergy RUNNUR MT Cable Tray Datasheet | Download |
| Clenergy RUNNUR MT Cable Tray Installation Guide | Download |
| Clenergy RUNNUR Warranty Document | Download |
Components
Cover for MT-Rail
CO-MT/855
(Standards: AS/NZS1866)
Fix Solar DC Cables
CR-CT-40/40/3000
(Standards: AS/NZS1866)

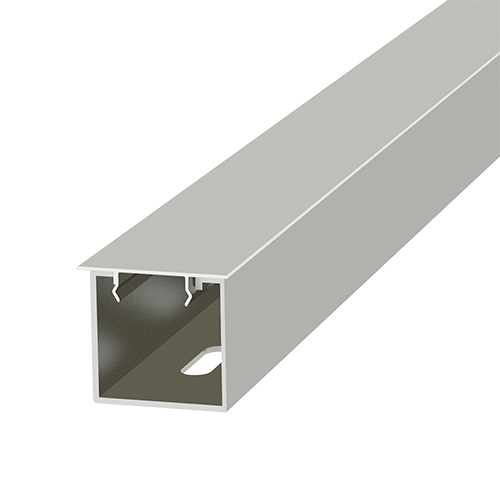

MT-Rail Cable Tray Assembly
EZ-CT-40/40 & CO-MT/855
(Standards: AS/NZS1866)
Accessories

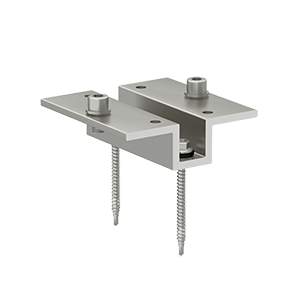

Tin Interface
CR-I-01
(Standards: AS/NZS 1866, AS 2837)
Splice Plate
EZ-SP-MT/CT
(Standards: AS/NZS 1866, AS 2837)

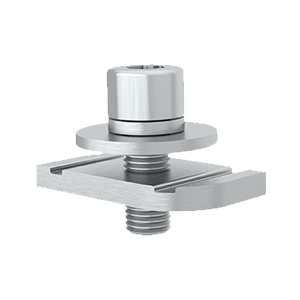

Diamond Module Assembly with Bolt M8*20 and Large Washer
CR-DM/BWS
(Standards: AS/NZS 1866, AS 2837)

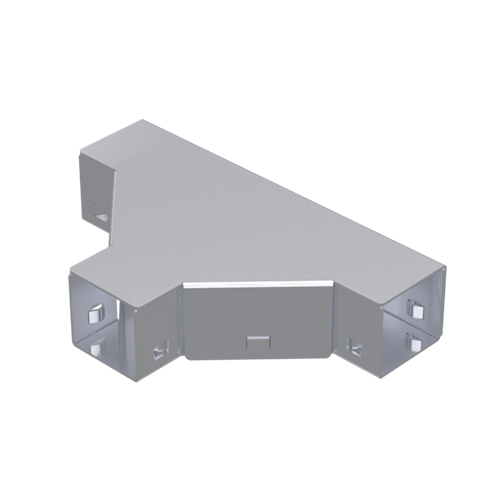

Tee Junction 40*40 mm
CR-T-40/40
(Standards: AS/NZS 1866, AS 2837)

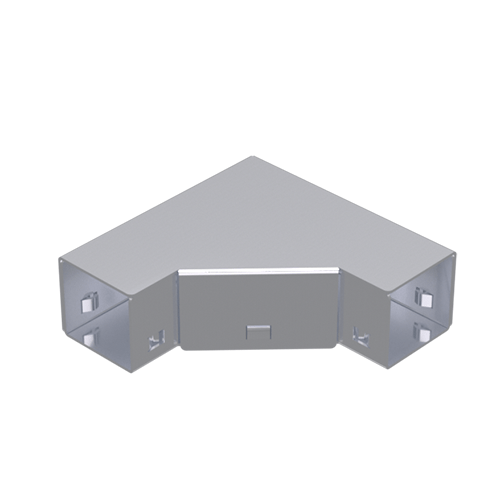

90 Degree Bend 40*40 mm
CR-B-40/40
(Standards: AS/NZS 1866, AS 2837)
Universal Cable Clip for PV Panels for Holding 6 Cables
EZ-CC-R/ST/6
Universal Cable Clip for PV Panels for Holding 2 Cables
EZ-CC-PV/2
Universal Cable Clip for PV Panels for Holding 4 Cables
EZ-CC-PV/4
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L
Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape
EZ-CC-PV/4/L
Cable clip for holding 2 large cables
CR-BRU/2
