RUNNUR®/RUNNUR/Cable Tray Systems/CR1 Cable Tray
Cable Tray Systems
CR1 Cable Tray
Cable Management System – Energy & Information Connected

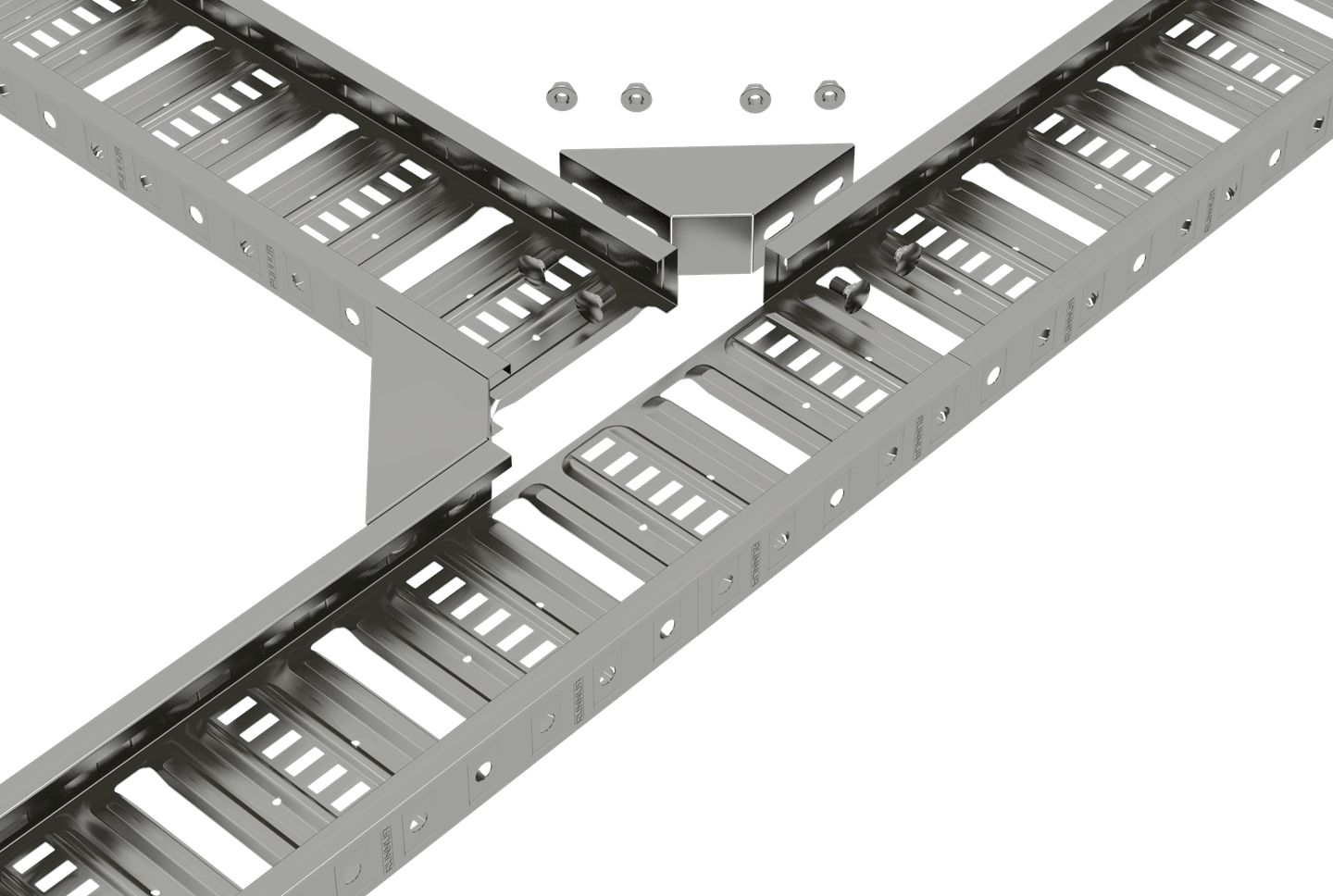

The RUNNUR Cable Trays, have been developed to manage information and energy cables in establishments where one can easily achieve tees, bends, risers, and crosses by using only small accessories.
High Corrosion Resistance
A robust and high corrosion resistance cable management system designed to handle bulk wires, improve aesthetics and safety in establishments. MAC steel (Zinc-Magnesium-Aluminium Coating) works well in outdoor environments. Compared to hot dipped galvanized materials, this finish receives several mutliples of mixing and bonding.
If your application is for a long-term outdoor exposure, MAC Steel is the ideal choice.
Loading Rating and Deflection
| Span | Load per Meter | Deflection |
|---|---|---|
| 3.0m | 28kg | 36mm |
| 2.5m | 40kg | 25mm |
| 2.0m | 63kg | 16mm |
| 1.5m | 113kg | 9mm |
Specification
| Part No. (Ordering Code) | Cable Laying Width(mm) | Cable Laying Depth(mm) | Overall Width(mm) | Side Rail Height(mm) | Weight (kg) | Packaging | Standards | |
|---|---|---|---|---|---|---|---|---|
| Cable Tray | CR1-CT150M | 150 | 43 | 172 | 50 | 1.887/m | 150 pcs per pallet | AS/NZS 4600, AS/NZS 1170.0, AS/NZS 1170.1, NZS 1170.5, NZS 4219 |
| CR1-CT300M | 300 | 322 | 2.707/m | 84 pcs per pallet | ||||
| CR1-CT450M | 450 | 474 | 3.563/m | 56 pcs per pallet | ||||
| CR1-CT600M | 600 | 626 | 4.402/m | 28 pcs per pallet |
| Part No. (Ordering Code) | Nominal Width(mm) | Overall Width(mm) | Length (mm) | Weight (kg) | Packaging | Standards | |
|---|---|---|---|---|---|---|---|
| Flat and Peaked Cover | CR-CTFC150M CR-CTFCS150M CR-CTPCS150M | 150 | 175 | 3000 | 0.954/m | 150 pcs per pallet | AS/NZS 4600 ( Labelling / Signs to AS/NZS5033) |
| CR-CTFC300M CR-CTFCS300M CR-CTPCS300M | 300 | 325 | 1.661/m | 84 pcs per pallet | |||
| CR-CTFC450M CR-CTFCS450M CR-CTPCS450M | 450 | 477 | 3.146/m | 56 pcs per pallet | |||
| CR-CTFC600M CR-CTFCS600M CR-CTPCS600M | 600 | 629 | 4.102/m | 28 pcs per pallet |
Product Details |
Customised |
|
Product Details |
Key Benefits
High Corrosion Resistance
RUNNUR by Clenergy is a robust and high corrosion resistance cable management system designed to handle bulk wires, improve aesthetics and safety in establishments.
MAC Steel Finish
The MAC steel (Zinc-Magnesium-Aluminium Coating) can be used in outdoor environments.
Videos
Installation Video
RUNNUR from Clenergy - Your Cable Management Partner
Downloads
Search result: documents found
| Clenergy RUNNUR Brochure | Download |
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR CR1 Cable Tray Datasheet | Download |
| Clenergy RUNNUR CR1 Cable Tray Installation Guide | Download |
| Clenergy RUNNUR Brochure | Download |
| Clenergy RUNNUR White Paper Salt Spray Test | Download |
| Clenergy RUNNUR Warranty Document | Download |
| Clenergy RUNNUR CR1 Cable Tray Datasheet | Download |
| Clenergy RUNNUR CR1 Cable Tray Installation Guide | Download |
| Clenergy RUNNUR CR1 Cable Tray Datasheet | Download |
| Clenergy RUNNUR CR1 Cable Tray Installation Guide | Download |
| Clenergy RUNNUR Warranty Document | Download |
Components
Peak Cover with "Warning Solar DC"
CR-CTPCSxxxM
Standards: AS/NZS 4600
( Labelling / Signs to AS/NZS5033 )
Flat Cover with "Warning Solar DC"
CR-CTFCSxxxM
Standards: AS/NZS 4600
( Labelling / Signs to AS/NZS5033 )
Flat Plain Cover (Cable Laying Width 150/300/450/600mm)
CR-CTFCxxxM
Standards: AS/NZS 4600
( Labelling / Signs to AS/NZS5033 )
150mm Wide Cable Tray
CR1-CT150M
Zn-Mg-Al Alloy Coating Steel
300mm Wide Cable Tray
CR1-CT300M
Zn-Mg-Al Alloy Coating Steel
450mm Wide Cable Tray
CR1-CT450M
Zn-Mg-Al Alloy Coating Steel

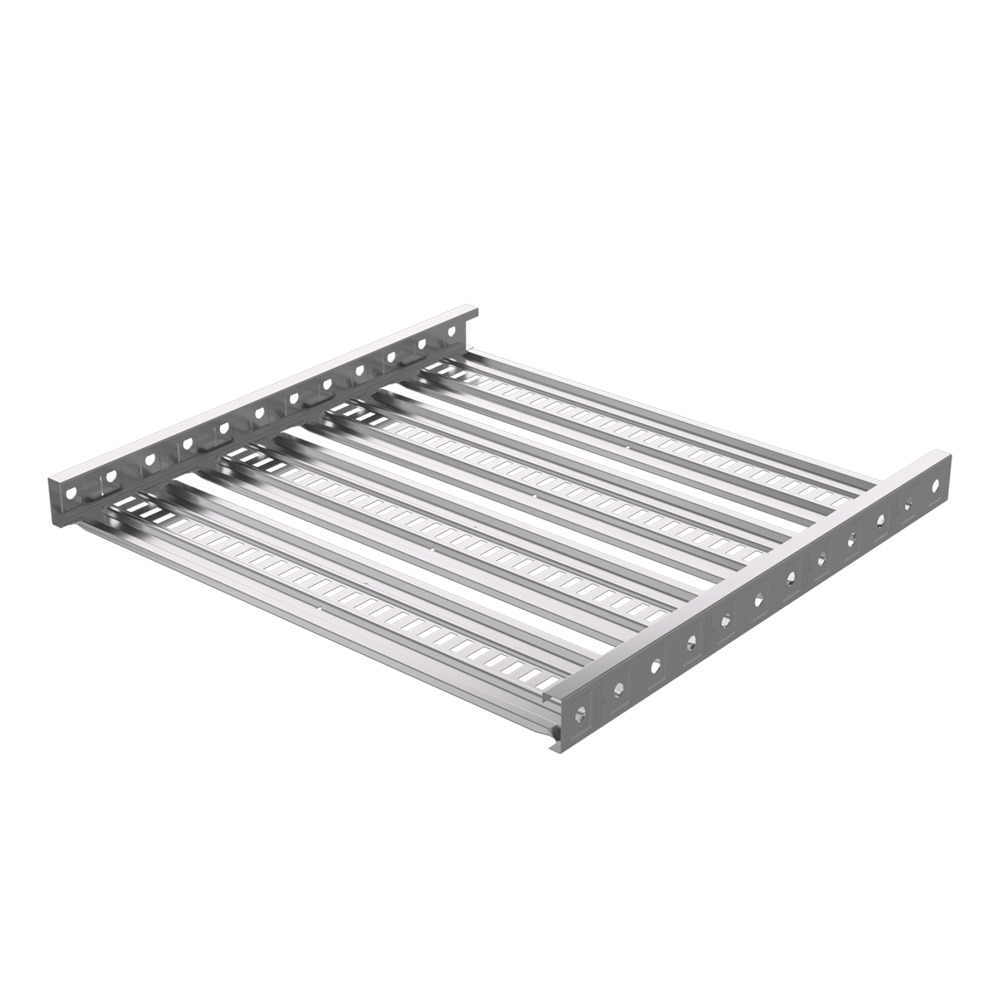

600mm Wide Cable Tray
CR1-CT600M
Zn-Mg-Al Alloy Coating Steel
Accessories

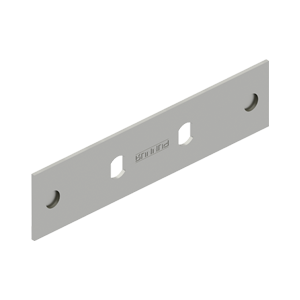

Splice Plate
CR1-SPM
(Standards: AS/NZS 4600)

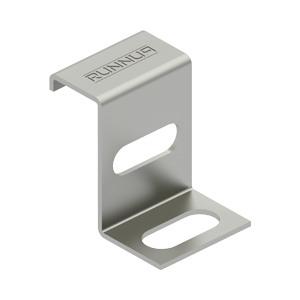

Hold Down Unit
CR1-HM
(Standards: AS/NZS 4600)

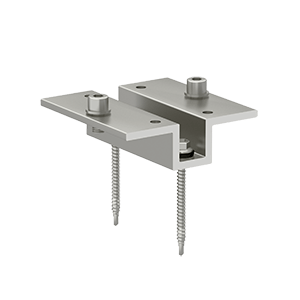

Tin Interface for Cable Tray
CR-I-01
(Standards: AS/NZS1866)

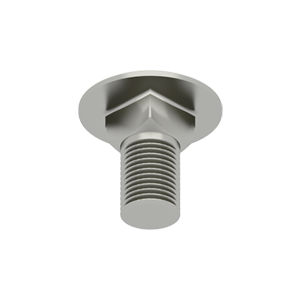

Splice Bolt M10*18
CR-SBS
(Standards: AS2837)

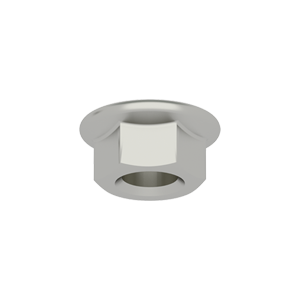

Counterbore Nut
CR-CS
(Standards: AS2837)

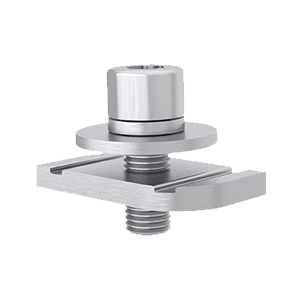

Diamond Module Assembly with Bolt M8*20 and Large Washer
CR-DM/BWS
(Standards: AS2837)

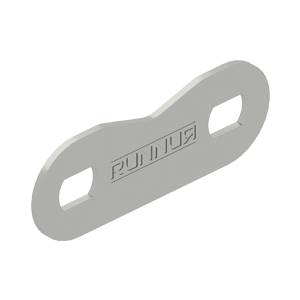

Riser Link
CR1-RM
(Standards: AS/NZS 4600)

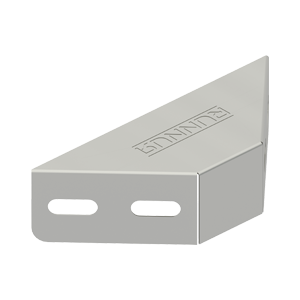

Tee/Cross Bracket
CR1-TM
(Standards: AS/NZS 4600)

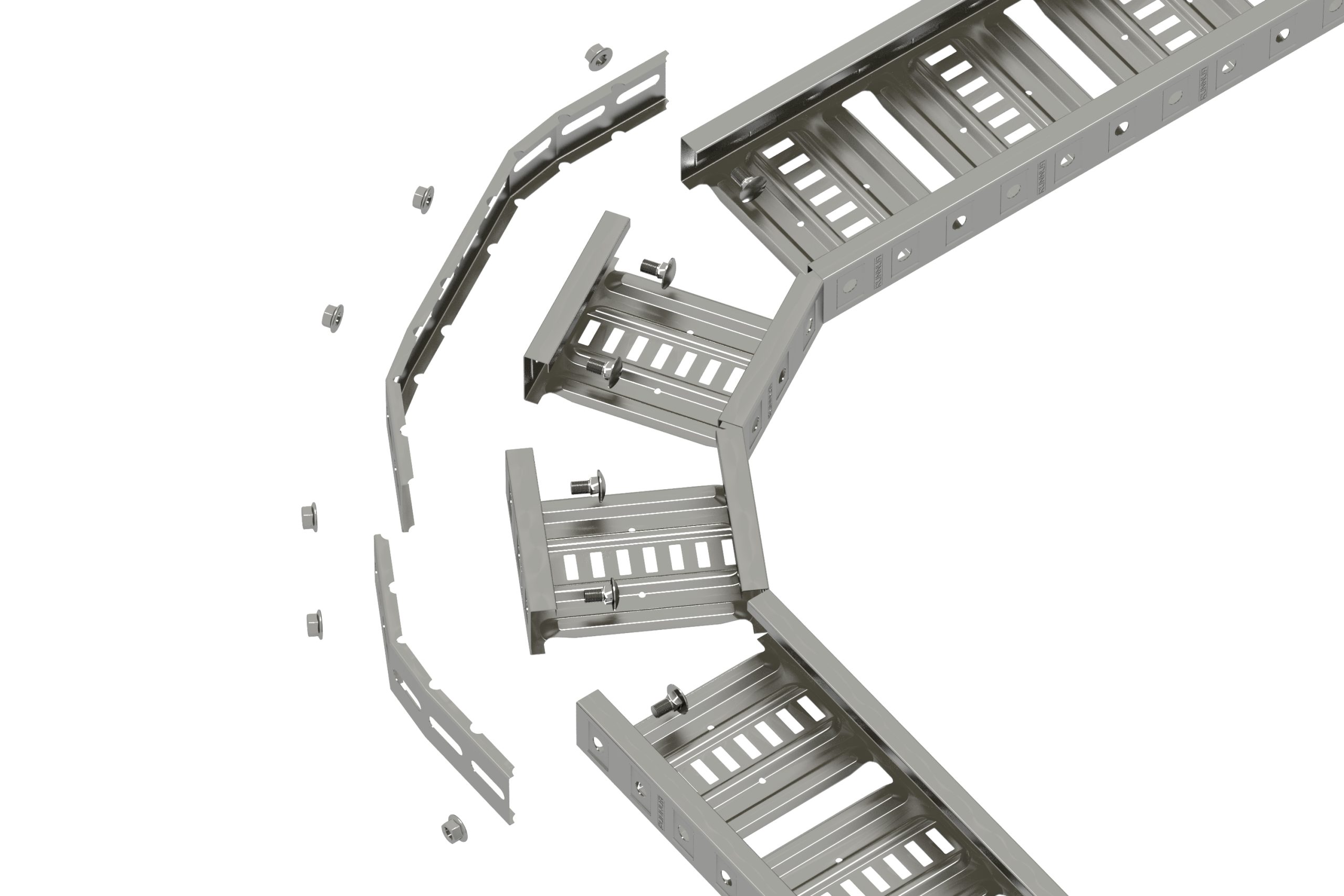

Radius Plate
CR1-RPM
(Standards: AS/NZS 4600)
Cable Tray Divider Strip
Standrad 3.0m length
CR1-DSM

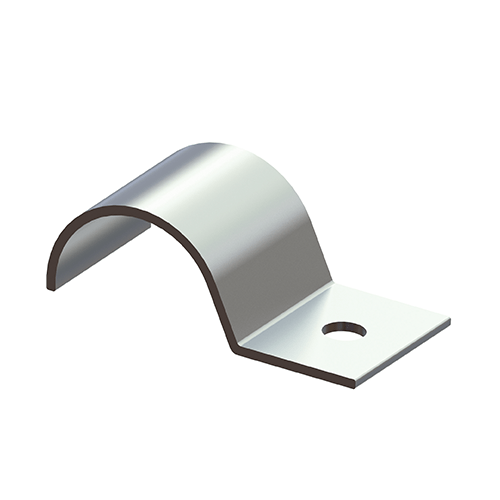

25 & 32 mm Conduit Half Saddle (*2)
CR-CSA

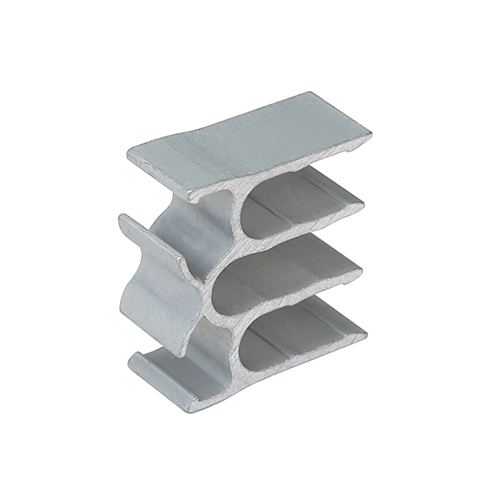

Universal Cable Clip for PV Panels for Holding 6 Cables
EZ-CC-R/ST/6

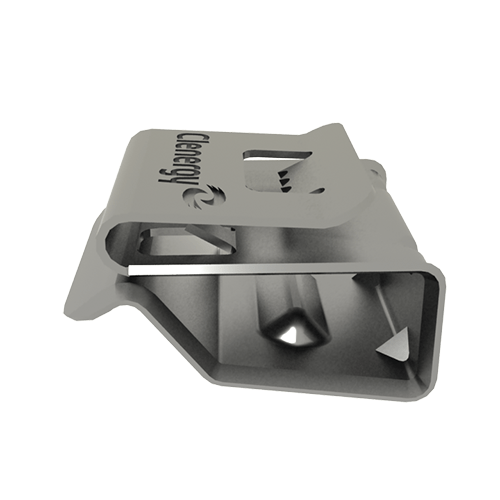

Universal Cable Clip for PV Panels for Holding 2 Cables
EZ-CC-PV/2

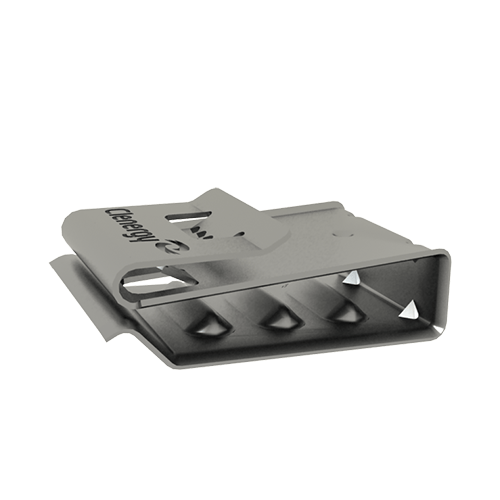

Universal Cable Clip for PV Panels for Holding 4 Cables
EZ-CC-PV/4

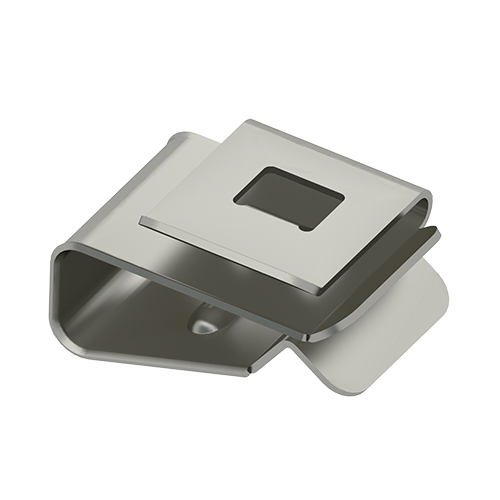

Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L

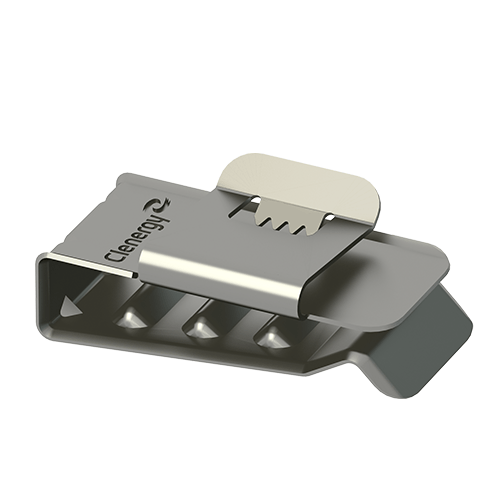

Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape
EZ-CC-PV/4/L

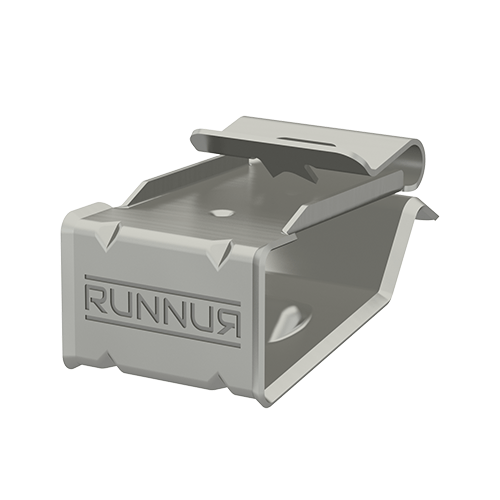

Cable clip for holding 2 large cables
CR-BRU/2
